New Range of Geared Motors is Available Off the Shelf

 Geared Motors



Renold Gears has announced the launch of a new range of geared motors, with reduction gear and geared motor options, that is available off-the-shelf and is suitable for most industrial applications.

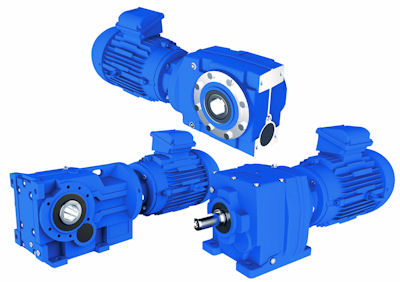

The new range includes the R Series inline helical, the K Series bevel helical and the S Series helical worm gear units. They have been designed with interchangeable Euro dimensions and accept standard IEC motors for fast and easy replacement.

All the geared motor units in the new range are designed with an oil tight gear head to keep motor replacement free from oil spills and feature cast iron cases with an epoxy-polyester, powder-coated finish for strength and durability.

The K Series bevel helical gear units are suitable for power ratings up to 160kW, with ratios up to 160:1, in three stages, and 35,000:1 in combined form. The R Series inline helical gear units are suitable for power ratings up to 160kW, with ratios up to 58:1, in two stages, and 16,200:1 in combined form. The S Series helical worm gear units are suitable for power ratings up to 45kW, with ratios up to 250:1, in two stages, and 60,000:1 in combined form.

Output torque is up to 33,000Nm on the K Series bevel helical range, up to 20,000Nm on the R Series inline helical range, and up to 10,000Nm on the S Series helical worm gear range, providing low cost per Nm. Detailed technical information is available on the new range as PDF downloads from renold.com.
