H / HB Series
State of the art heavy duty helical and bevel/helical units, incorporating case hardened and profile ground gears throughout. Available in 23 sizes with capabilities up to 480KNm.
The units are available as:
- Bevel / helical units - Type HB
- Parallel axis helical units - Type H

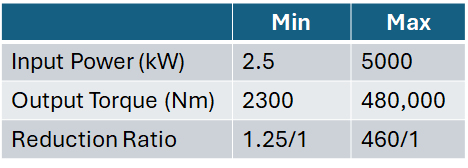

Technical Specifications
Features
- Industry Standard dimensions to eliminate downtime & rengineering costs.
- Heavy duty design for high torque applications.
- Versatile range of size, reduction stage & mounting options.
- Wide ratio range gives speeds to match all design demands.
- Motorised and speed reducer options.
- Hollow, shrink disc and solid output shaft variants.
- Forced lubrication systems for vertical & high speed applications.
- Fan and external cooling systems available to allow greater torques to be transmitted at higher input speeds.
- ATEX certification options.
Benefits
- Premium quality heavy duty taper and spherical roller bearings are used for maximum load capacity and long life.
- Gear cases are manufactured in close grain cast iron for absorption of vibration and low noise levels.
- Case hardened and profile ground gearing, giving maximum power transmission capacity, smooth operation, long life and high efficiency.
- All units are available with the option of male output shafts or shaft mounting output, suitable for all design possibilities.
